  2x2 Carriage
  2x4

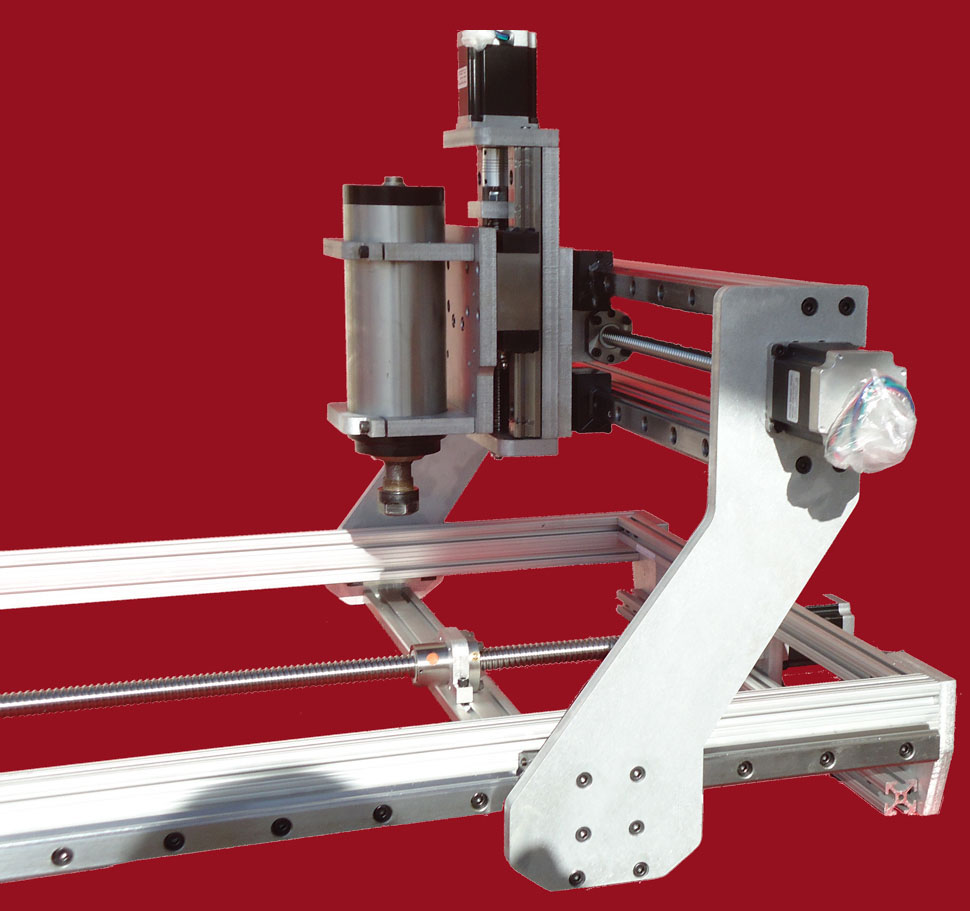

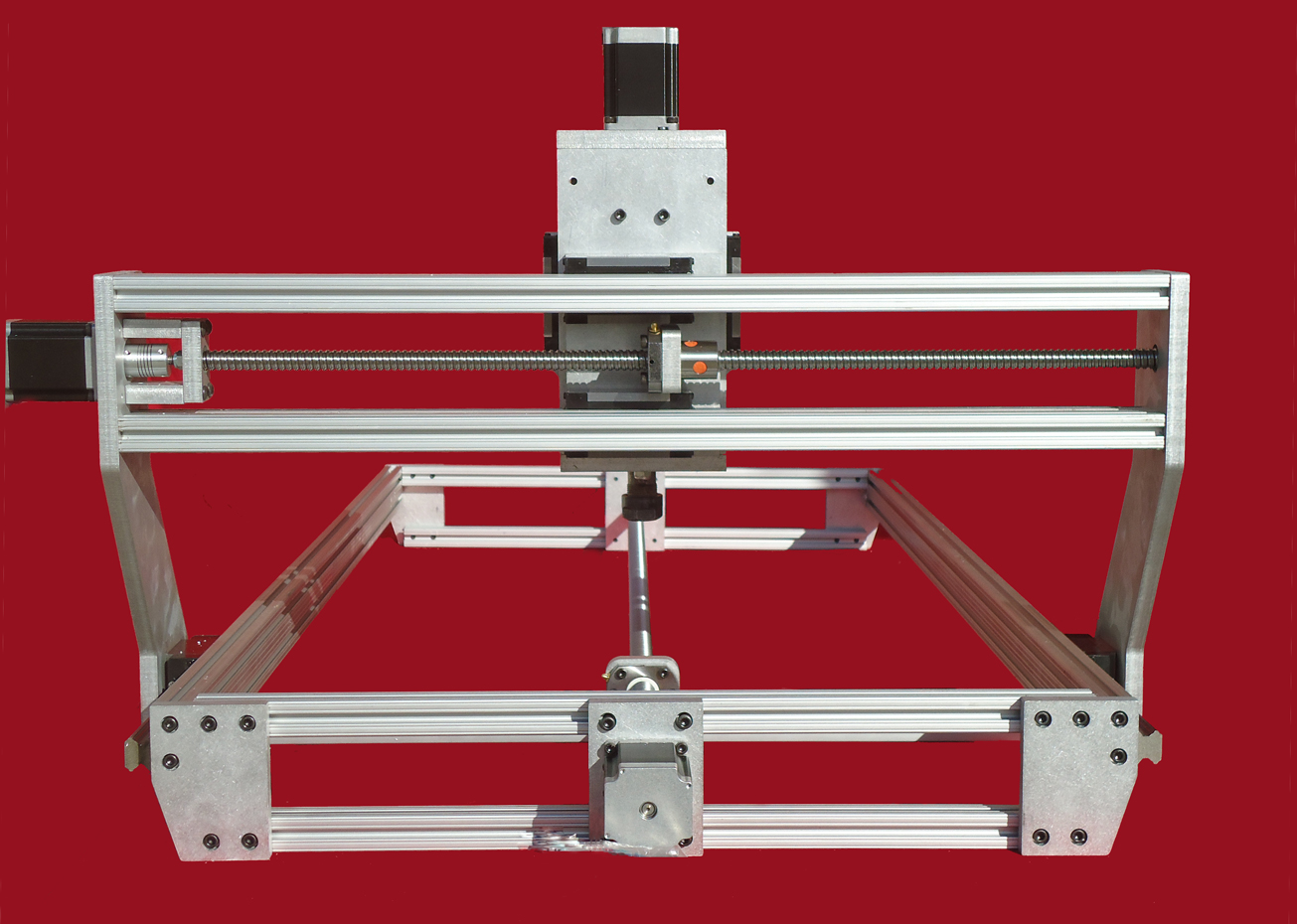

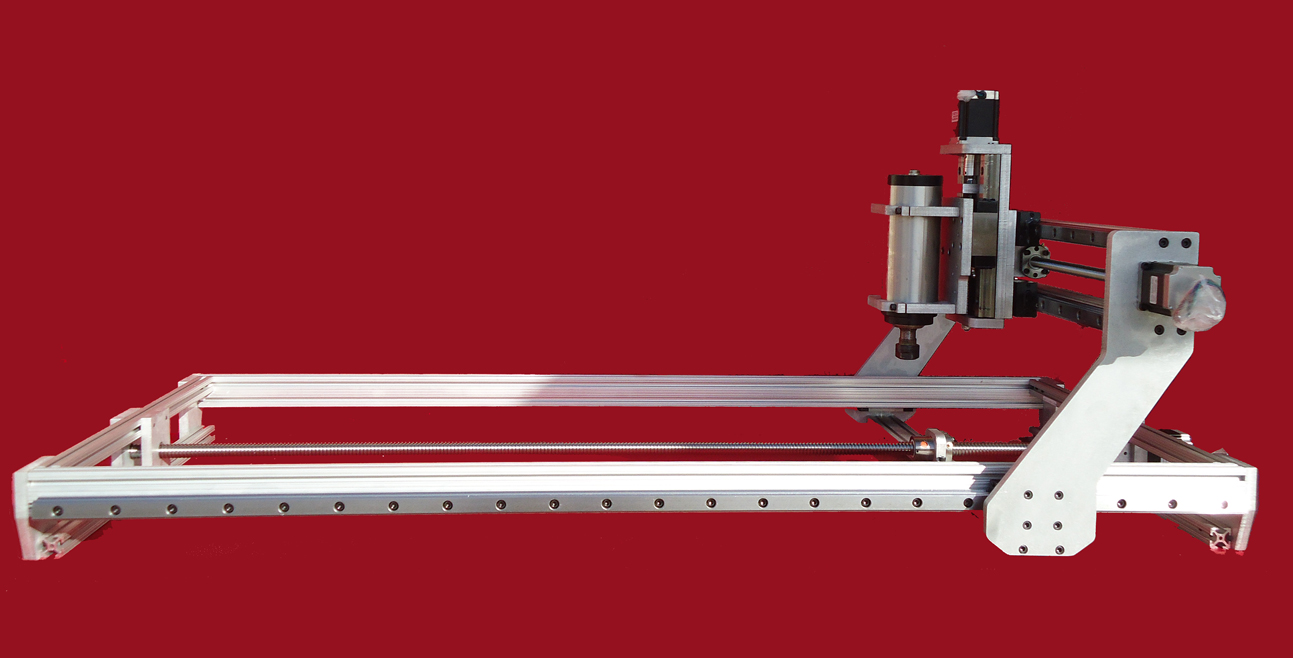

These CNC machines are built for accuracy and precision; their capable of 2D and 3D cutting; and they’re machined from a combination of tough unyielding 6061 aluminum and precision aluminum extrusions.

They’re able to be pushed harder and faster than the round rod linear bearing types.


2x2 SPECIFICATIONS:

*

Work area  30” x 30”

*

Maximum milling area  24.5” x 24.5”

*

Z axis (travel and clearance)  4”

*


25 mm rigid rail and carriage bearing ways on X, Y, Z

*


16 mm C7 anti backlash rolled high tolerance ball screws on X, Y, Z axis



2x4 SPECIFICATIONS:

*

Work area  55” x 30”

*

Maximum milling area  49.5” x 24.5”

*

Z axis (travel and clearance)  4”

*

25 mm rigid rail and carriage bearing ways on X, Y, Z
*


16 mm C7 anti backlash rolled high tolerance ball screws on X, Z axis

*


20 mm C7 anti backlash rolled high tolerance ball screw on Y axis



PROTOTYPE OR PRODUCTION CUT:

*

Carbon Fiber

*

Aluminum

*

Plastics

*

Wood

*
Brass
*

Foam (and many more)




'FM650-C' FrontRear


2x4 Shipping USA $225.00
2x4 Shipping Canada or Mexico $325.00
2x2 Shipping USA $200.00
2x2 Shipping Canada or Mexico $300.00
Model
Mount Type
